Slim Die-casting High accurate 4000 HZ 16 bits UHD Led Display Front access Ratio 16:9 7.5kg
Detailed Specifications:
1. Magnetic front access, quick replace modules
2. Anti-collision cabinet design
3. With pure golden wire connection in LED - Nationstar
4. Grand A row material for module frame and mask, protective packing
5. 6 layers PCB and copper plating thickness > 18mil
6. Stainless steel screws when assembly
7. Disassembly and assembly are quick and easy
8. 3 to 5 years warranty
9 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
Quick details
100-240V power supplier
High refresh, great grey scale
Front & Rear maintenance
6 layers PCB 2.0mm thickness
Nationstar led lamp SMD2020 or SMD1515
MBI Ic from Taiwan
CE Power supplier 5V 60A
Classical design and natural tech., reliable quality and great performance.
Seamless connecting tech., screen flatness error <0.1mm.
Patented mask, eliminating the dark spots, improving consistency and viewing angle.
Ultra HD Narrow pixel pitch led screen are a trend in future, as led technology has been developped and revolution. Ultra HD p2.5 led screen is most hotseller in the market. We use best Epistar led chip and MBI high refresh IC, so that there is high grey 16 bits and no defective rate.

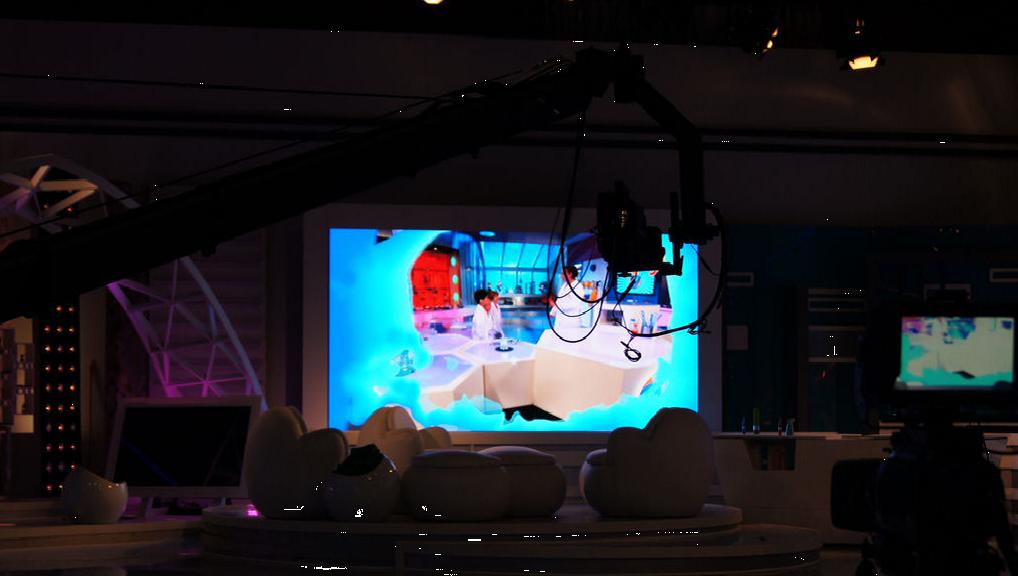

Now P2.5 ultra hd narrow pixel pitch led screens are widely used for Tv station ,conference and monitoring room...Also LED screen has its advantages like high brightness, good uniformity and grey,high contrast which beat DLP,LCD..
UHD-P2.5
| ITEM | Ph2.5mm |
| Pixel Pitch(㎜) | 2.5 |
| Pixel Density(pixel/㎡) | 160000 |
| Maintenance | Front access |
| LED Configuration | SMD2020 SMD1515 |
| Panel Dimension(W×H)㎜ | 160*160 |
| Scan Mode | 1/32 |
| Cabinet Dimension(W×H)㎜ | 480*480 |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Weight(㎏) | 7.0 |
| Brightness(cd/㎡) | ≥1000( Color Temperature6500K) |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 160° |
| Viewing Angle(H) | 160° |
| Contrast Ratio | 4000:1 |
| Max Power Consumption(w/㎡) | 800 |
| Ave Power Consumption(w/㎡) | 480 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥3840 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| MTBF | ＞50000h |
| LEDLife Span | ＞100000h |
| LEDBest View distance | 2m-30m
|
Our Service:
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
