SMD3535 Die-casting P10 Stadium Perimeter Led Display scan 1/2 Front Maintenance Angle adjustable
Quick introduction:

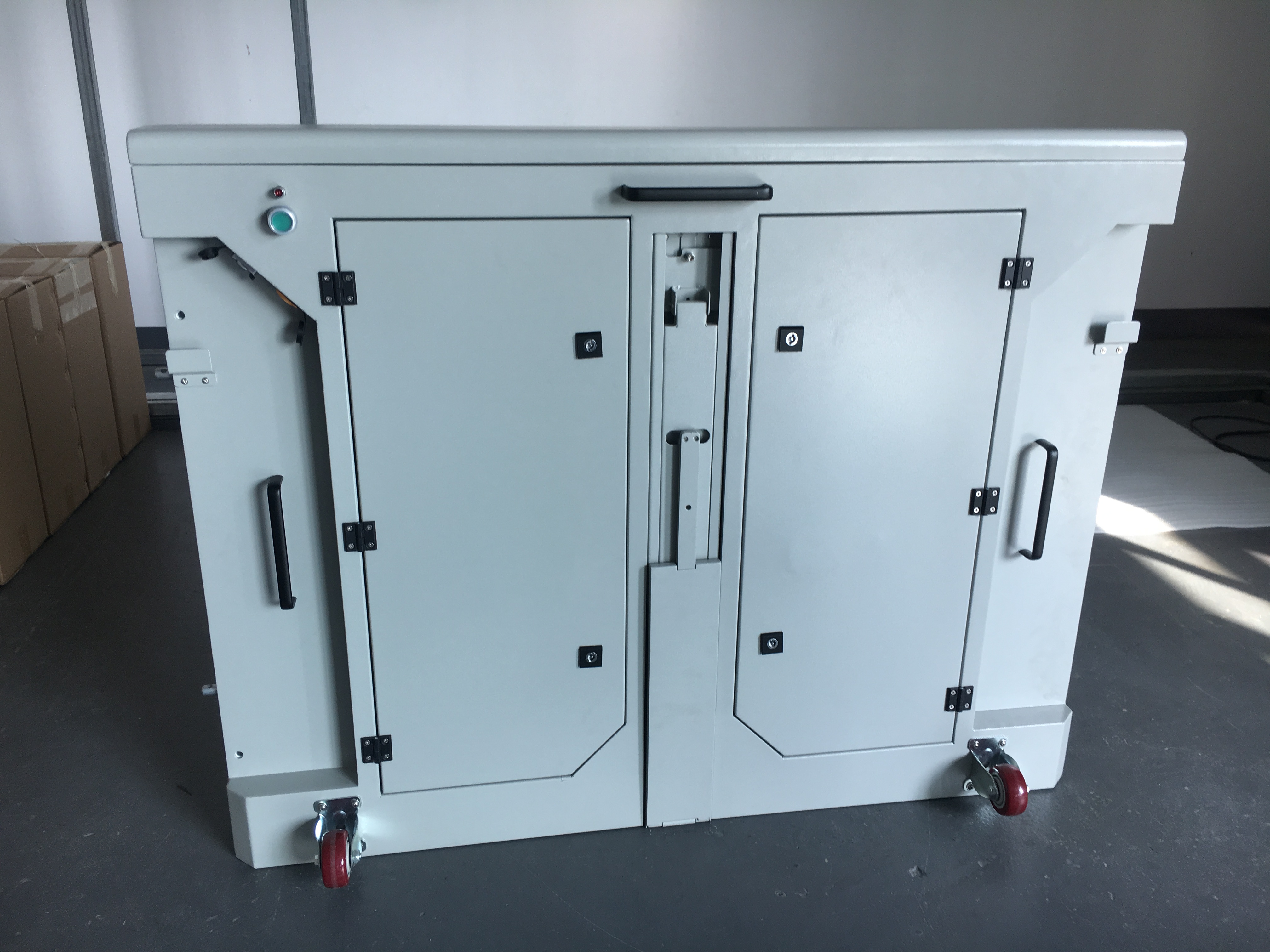

SMD3535 P10 Die casting light weight cabinet
No ghosting,no mosaic
Front & Rear maintenance (no tool)
Over power protection
Stadium LED Display For Wolrd Cup Advertising , Super Clear Vision, With Large Viewing , lightweight
Anti-corrosion Anti-rust
Super slim---high-strength,more slim than aluminum in the design,thiner around 30%
Anti-interference---special anti electromagnetic interference function
Fast cooling---excellent heat dissipation perormance to protet the modular circuit
High strength
Angle adjustable
Rubber roof to protect players
Specification:
Easy assembly/disassembly,Far viewing distance,Custom sizes,Meet sever weather,Support multi data format ,HD security cameras,Wireless control etc.
Advantages:
Multi-functional use for Stadium, rental, fixed installation
Hot back-up --no signal failable
Wide viewing angle
1. New design mask. The mask of display is of soft, toughness and high strength, achieving strong impact-resistant ability
2. High impact-resistance: Silicon rubber mask of tile can absorb the impact from balls or players.
3. Support degree is adjustable . The supporting stand can be adjusted between 75 to 90 degrees
4. Technology back-up. Dual-system and hot swap backup mechanism, improving the reliability of system greatly.
5. Meet all kinds of inclement weather of outdoor environment.antisepsis, waterproof, moisture-proof, antisnow. bear very low and hot temperature(-25ºC--+85ºC)
6. Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
7. Can be connected with PC and the website, and also can be controlled remotely via wireless controller (it depend on the size of led display).
Sports are more and more poular in recent years and stadium led display is the main advertising media when exciting games going on.The effect of advertising on live stadium led display is much better than other advertising media
Currently P10 stadium led displya is the most popular in outdoor digital media application. It has advantages like customized display sizes, high definition, friendly user interface and multi-functional control methods. .
P10 Outdoor LED Display front maintenance
| Pixel pitch | 10mm SMD |
| Led | Epistar |
| Pixel Density(pixel/㎡) | 10000 |
| Warranty | 3 years |
| LED Configuration | SMD3535 full color |
| Module | 320*320mm |
| Scan Mode | 1/2 |
| Cabinet Dimension(W×H)㎜ | 960*960mm 1280mm |
| Cabinet Material | Aluminum |
| Brightness(cd/㎡) | ≥6000 ( or ≥7000) |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥2000 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | ８m-300m
|
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
