Indoor 1080P Great Grey Scale Conference Led Video Wall Front Access High Accurate

Name: Indoor 1080P Great Grey Scale Conference Led Video Wall Front Access High Accurate
Brand: Zhongyi
Price: 1 USD

China Indoor 1080P Great Grey Scale Conference Led Video Wall Front Access High Accurate wholesale

Brand Name : Zhongyi

Model Number : ZNI25

Certification : CE / RoHS / FCC / ETL / TUV

Place of Origin : Shenzhen, China

MOQ : 1 cabinet

Price : negotiatioin

Payment Terms : 30% T/T prepayment, 70% T/T balance before shipment

Supply Ability : 3000 squaremeter per month

Delivery Time : 28-32 working days after receiving your prepayment

Packaging Details : Plywood or Flight cases, 6 pcs in a flight cases(Recommend)

Power supplier : Greatwall CE

Power : 5V 60A

Refresh : 2880HZ or 3840HZ

Led Chip : Epistar Silan

LED Lamp : SMD2020 or SMD1515

IC : MBI5153

Warranty : 2 years or longer

Connector : Neutrik or Seetronics

Cabinet materials : Die-casting

Cabinet weight : 7.5 kg per piece

Packing : Flight case

IP : IP30

Contact Now

Indoor 1080p High refresh Conference use UHD Led Display Front Access High Accurate

Detailed Specifications:
1. With pure golden wire connection in LED - Nationstar
2. Grand A row material for module frame and mask
3. 6 layers PCB and copper plating thickness > 18mil
4. Stainless steel screws when assembly
5. Disassembly and assembly are quick and easy
6. 3 to 5 years warranty
7. Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.

Quick details
100-240V power supplier
High refresh, great grey scale
Front & Rear maintenance
6 layers PCB 2.0mm thickness

Nationstar led lamp SMD2020 or SMD1515
MBI Ic from Taiwan

CE Power supplier 5V 60A

Classical design and natural tech., reliable quality and great performance.
Seamless connecting tech., screen flatness error <0.1mm.
Patented mask, eliminating the dark spots, improving consistency and viewing angle.

Ultra HD Narrow pixel pitch led screen are a trend in future, as led technology has been developped and revolution. Ultra HD p2.5 led screen is most hotseller in the market. We use best Epistar led chip and MBI high refresh IC, so that there is high grey 16 bits and no defective rate.

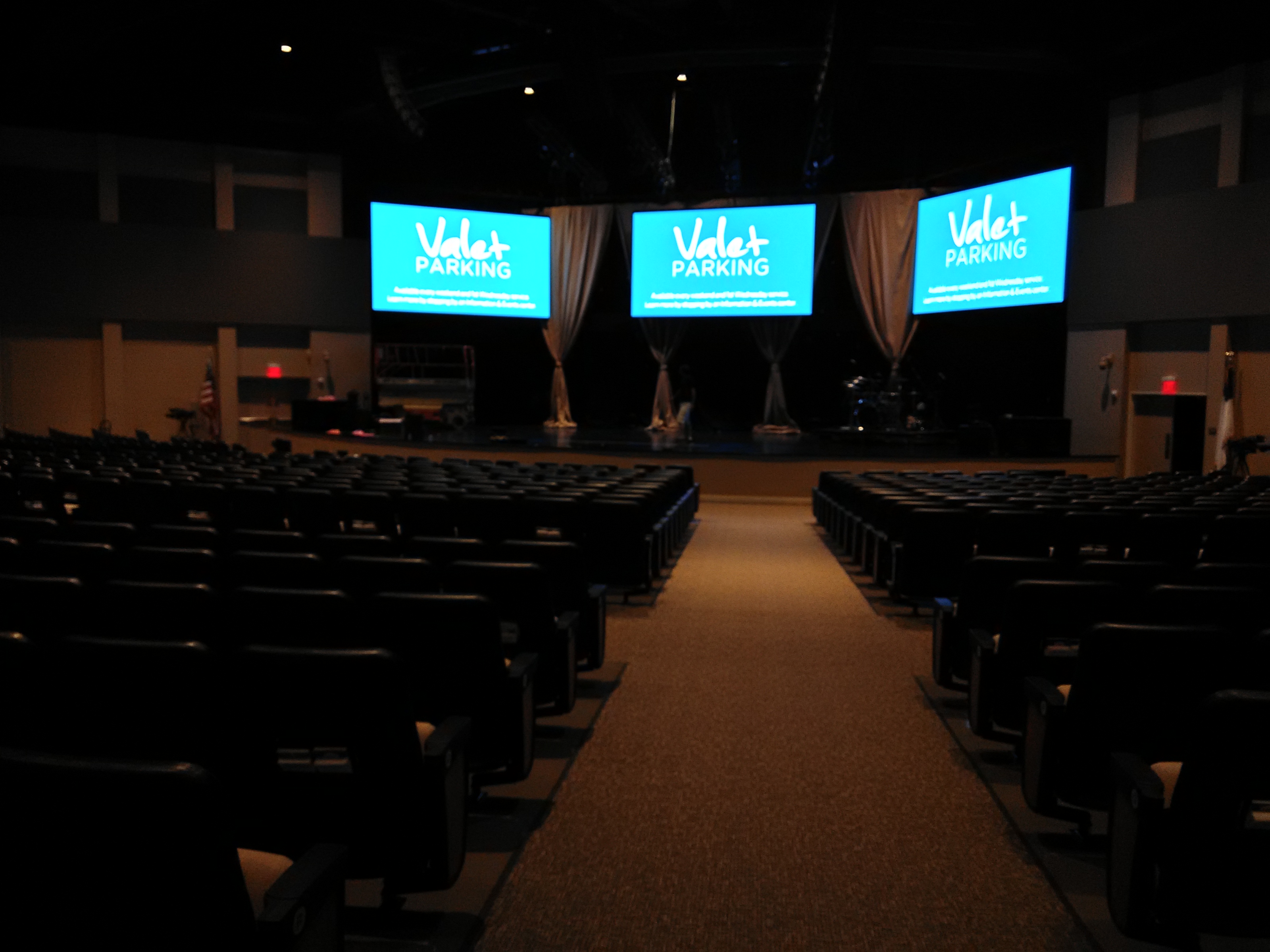

Now P2.5 ultra hd narrow pixel pitch led screens are widely used for Tv station ,conference and monitoring room...Also LED screen has its advantages like high brightness, good uniformity and grey,high contrast which beat DLP,LCD..

UHD-P2.5

ITEM	Ph2.5
Pixel Pitch(㎜)	2.5
Pixel Density(pixel/㎡)	160000
Pixel Component	RGB full color
LED Configuration	SMD2020 SMD1515
Panel Dimension(W×H)㎜	160*160
Scan Mode	1/32
Cabinet Dimension(W×H)㎜	480*480
Cabinet Material	Die-casting Aluminum
Cabinet Weight(㎏)	7.0
Brightness(cd/㎡)	≥1000( Color Temperature6500K)
Color Temperature	3200K-9500K
Viewing Angle(V)	160°
Viewing Angle(H)	160°
Contrast Ratio	4000:1
Max Power Consumption(w/㎡)	800
Ave Power Consumption(w/㎡)	480
Operating Power Source	AC85~264V(47-63Hz)
Frame Frequency(Frame/S)	60
Refresh Rate(Hz)	≥3840
Gray Level	RGB65536Grade
Brightness Adjustment Level	256Grade
Brightness Adjustment Mode	Manual/Automatic/Programmable
Control Distance	UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km
Operating Temp	﹣20℃－﹢50℃
Operating Humidity	10%－90%RH
MTBF	＞50000h
LEDLife Span	＞100000h
LEDBest View distance	2m-30m

Our Service:
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
